GRM Flow Products is excited to offer threaded Class 200 Bronze Globe Valves to our customers.
Our Bronze Globe Valves are in accordance with the MSS-SP80 standard that is a requirement to be rated for 200 PSI WSP / 400 PSI CWP steam applications. The valves have a union bonnet, rising stem, swivel disc holder and PTFE discs.

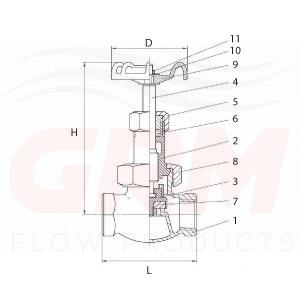

| # | DESCRIPTION | MATERIAL |
|---|---|---|
| 1 | Body | Cast Bronze (B62) |
| 2 | Bonnet | Cast Bronze (B62) |
| 3 | Disc | Cast Bronze (B62) |
| 4 | Stem | B584 – C87500/Bronze |
| 5 | Packing Nut | Brass/Cast Bronze |
| 6 | Packing | Graphite |
| 7 | Gasket | PTFE |
| 8 | Connecting Nut | Cast Bronze (B62) |
| 9 | Handwheel | Aluminum |
| 10 | Name Plate | Aluminum |
| 11 | Handwheel Nut | Steel Zinc Plated |
| SIZE | L | H | D | PART # |
|---|---|---|---|---|
| 1″ | 3.748 | 5.875 | 3.543 | BG100100 |
| 1 1/2" | 4.748 | 7.343 | 3.957 | BG100150 |
| 2" | 5.685 | 8.220 | 4.921 | BG100200 |
| Hydrostatic Test Pressure | Shell Seat |
600 PSI 400 PSI |
| Working Pressure | Water, oil, air under 120°C Saturated steam |
400 PSI 200 PSI |
