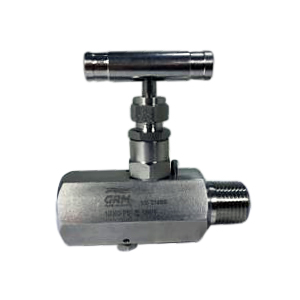

Straight Needle Valve

GRM Flow Products proudly supplies valve repair shops, wellhead companies, instrumentation shops, and numerous supply stores with an array of types and sizes of needle valves ranging from 1/4″ NPT – 1″ NPT.

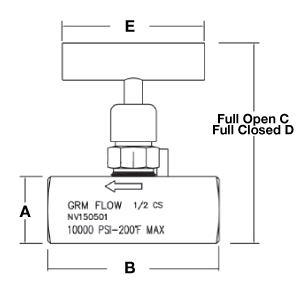

GRM offers globe style straight male x female, straight female x female, angled (90°) male x female, and angled (90°) female x female needle valves, available in hard seat and a 10,000 PSI rating with Viton® O-rings with a backup ring seal.

PRODUCT DETAILS:

• CRN Registration Number 0C17585.2
• Hard Seat

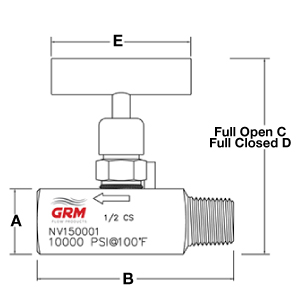

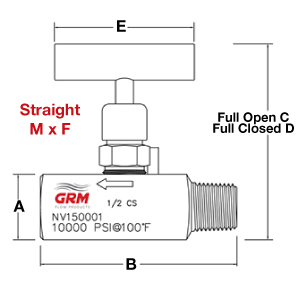

• Male x Female, Female x Male, or 1/2″ NPT Male x Female
• Service to 10,000 PSI @ 100°F
• Single piece rotating stem plug
• Rolled stem and bonnet threads for greater strength and smoother operation
• Blowout proof stem provides positive back seal in full open position
• Stem packing below the threads prevents thread galling, lubricant washout and corrosion
• Vinyl bonnet hood protects from lubricant washout and ingress of contaminants
• One piece bonnet with metal-to-metal, body to bonnet seal below bonnet threads
• Viton® O-Ring and backup ring Seal
